【Brief introduction of goods】:

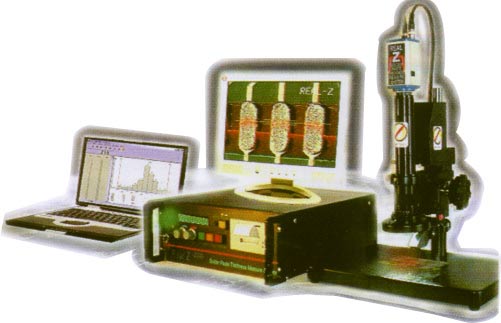

1st, the tin paste thickness reflectoscope reflector Z2000 error source few, stable is reliable
Uses the relative method elimination error, sees the erroneous analytical table. Has the mean value function to be possible in addition effectively to reduce the error. Uses the diffraction grating ruler is the fixed datum; Uses granite platform which wear-resisting also is not easy to distort; An entire seat-s on a plane design, steady earthquake resistance; The double roller Z axis rail track, the life long also the precision retentivity is good.
2nd, may conveniently compensate the copper foil and anti- welds film thickness error
When does not have by the survey week the copper foil, measured thickness has contained the copper foil thickness. The instrument provides may calculate and the compensating errors function quickly according to the actual situation.
3rd, the tin paste thickness reflectoscope reflector Z2000 measuring range is big
At the same time examines the number strip line to produce the line, may choose the survey product by to cut the monitoring goal quickly.
4th, tin paste thickness reflectoscope reflector Z2000 consummates statistical function, direct-viewing graph
The automatic judgment is qualified or not, each product may the independent judgment standard and the option establishment. Has the mean value, the standard is bad, Cpk, fraction defective, distribution map, trend chart, Xbar-r chart and so on automatic computation function, but automatically produces the integrity the report form, the data may according to the Excel form output.
5th, tin paste thickness reflectoscope reflector Z2000 operates easily
Contact surface friendly, the use is quickly convenient. Uses the mechanical sampling to trigger the function, then completes the duty general survey through a knob. On the screen may lay aside the product picture to be possible to survey the position the direction, avoids the error.
6th, use broad, the survey scope is big
May use in the semiconductor, selects the rubber, the BGA tin ball, precise components and so on. The floor size is big, surveys the great size the product.
|
【Remarks】:
Specification and parameter:
Measuring range: 35mm (70mm may option)
Biggest survey altitdue of target: 55mm (90mm may option)
Resolution: 1
Machine precision: 6
Effective work floor: 400 x 600mm
Enlargement percentage: 40~560X (2X numerical code)
Laser: Wave length 650nm, < 30Mw
Video output: PAL standard service pattern
Communication port: Standard RS232
Power source: 220VAC,50Hz, (110V,60Hz may elect)
Heavyweight: 50kg
Outlook (W x D x H): 600 x 550 x 650mm
|
